KOMG-CF-EX
(Compact & Explosion-proof Type)

Product Discription

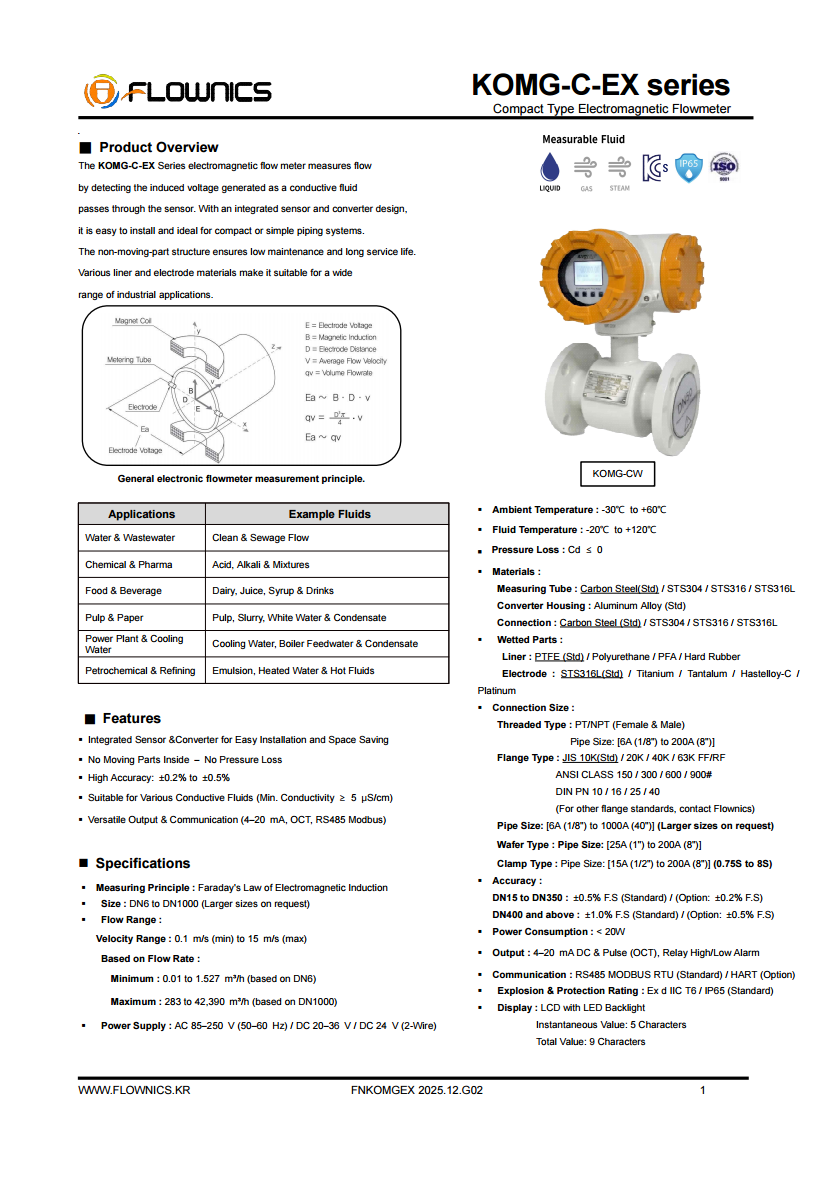

Compact Type Electromagnetic Flow Meter

The KOMG-CF-EX Compact Type Electromagnetic Flow Meter is a precision instrument that operates based on Faraday’s law of electromagnetic induction to accurately measure the flow of conductive liquids.
Designed with an integrated sensor and converter, it enables easy installation even in confined spaces. The non-moving part structure ensures minimal pressure loss, high durability, and long-term stable performance.
This flow meter is widely used in water supply, wastewater, chemical, pharmaceutical, food, and slurry applications. With high accuracy of ±0.5% and fast response time, it provides an optimized solution for flow monitoring across various industries.

✔ Maintenance-free structure with no moving parts for semi-permanent lifespan
✔ Compact integrated design for easy installation in limited spaces

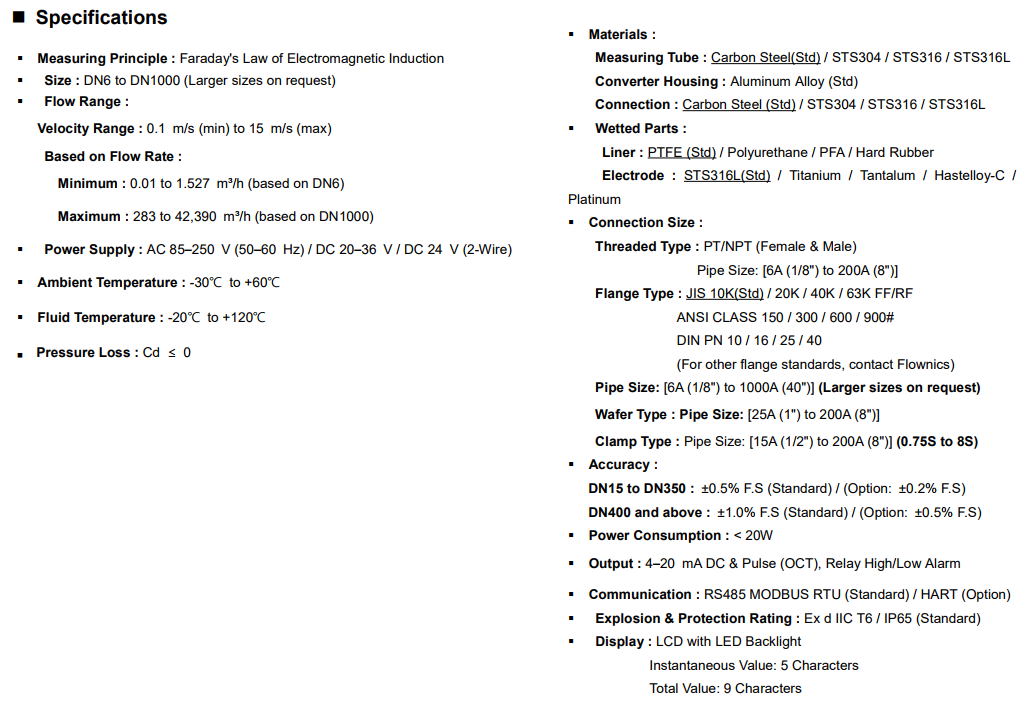

✔ High accuracy: ±0.5% (Optional: ±0.2%)
✔ LCD display for real-time monitoring of flow rate, totalized value, and status codes
✔ Available with various liner materials (PFA, PTFE, Hard Rubber) and electrode options
✔ Applicable to all conductive liquids including tap water, wastewater, chemicals, slurry, and food-grade fluids
✔ IP65-rated enclosure suitable for outdoor installation
✔ Multiple output options: 4–20mA, Pulse, RS485 (Modbus RTU)
