KOMG-RF-EX
(Remote & Explosion-proof Type)

Product Discription

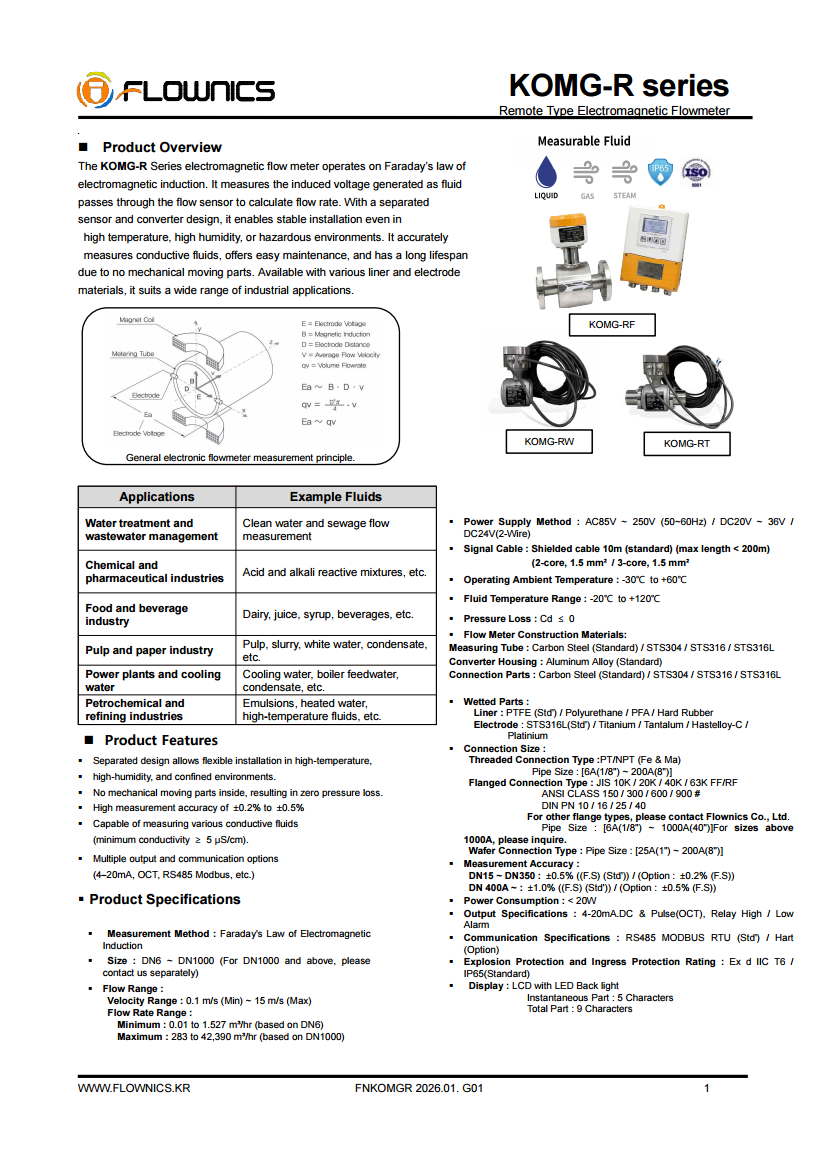

Remote Type Electromagnetic Flow Meter
The KOMG-RF-EX is a high-precision remote-type electromagnetic flow meter that operates based on Faraday's law of electromagnetic induction to measure the flow of conductive fluids.
Its non-intrusive design with no moving parts ensures minimal wear and virtually no pressure loss, offering long-term durability and stable performance across a wide range of industrial applications including water supply, wastewater treatment, chemical processing, pharmaceuticals, food and beverage, and power plants.

With a separated sensor and converter, the unit allows for flexible installation in challenging environments and provides ±0.5% high accuracy (optionally ±0.2%) and fast response, making it ideal for precise flow monitoring and control.

✔ Non-wearing structure ensures semi-permanent service life
✔ Remote-type design (separated sensor and converter) for easy maintenance and installation flexibility
✔ High measurement accuracy of ±0.5% (Option: ±0.2%)
✔ Real-time flow, total, and diagnostic code display via LCD screen
✔ Selectable liner and electrode materials: PFA, PTFE, hard rubber, etc.
✔ Compatible with all conductive liquids: water, wastewater, chemicals, slurry, food, etc.
✔ IP65-rated waterproof housing allows for outdoor installation
✔ Multiple output options: 4–20mA, Pulse, RS485 (Modbus RTU)
