KOMGS
(For Low Flow Range)

Product Discription

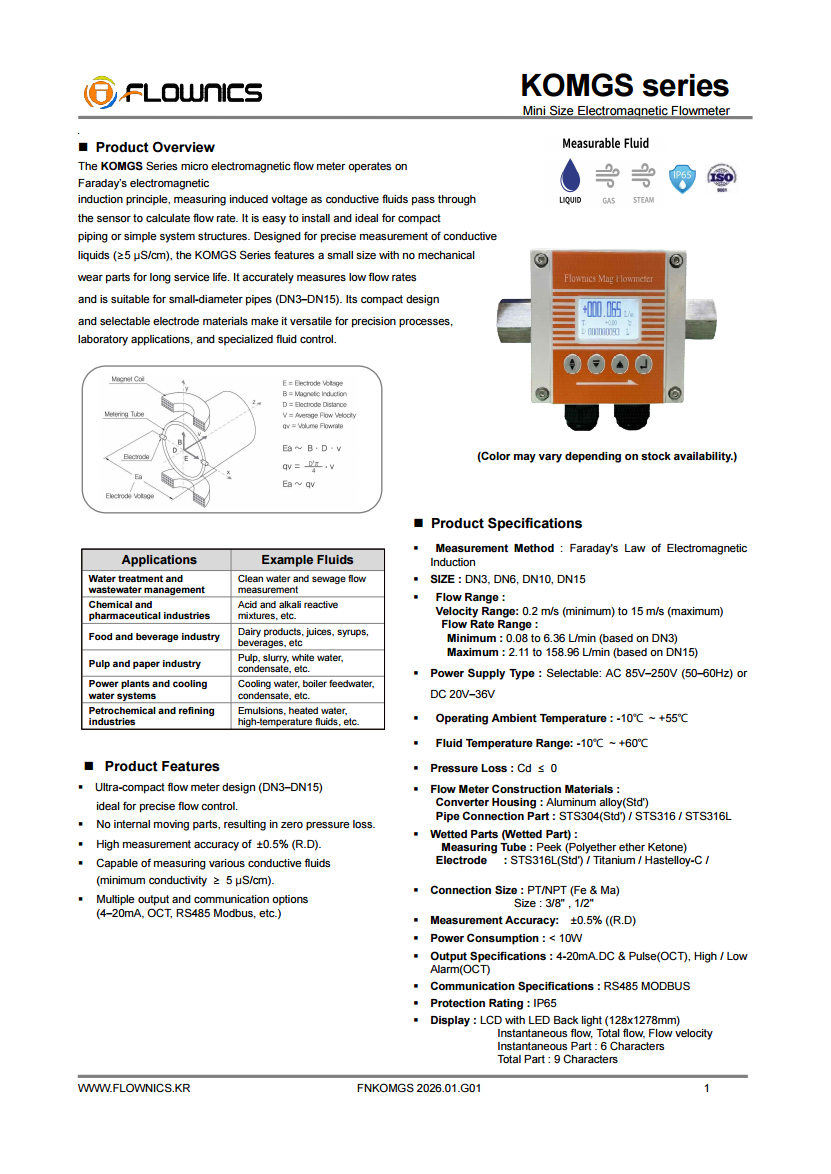

Mini Electromagnetic Flow Meter

The KOMGS Series is a miniature electromagnetic flow meter equipped with a compact PEEK measuring tube, designed to precisely measure the flow of low-volume conductive fluids.
With its ultra-compact design, it can be easily installed in confined spaces, and the absence of mechanical moving parts ensures minimal pressure loss, high durability, and excellent repeatability.
Specially designed for small-diameter piping, low-conductivity liquid detection, and high-precision measurement, KOMGS is an ideal solution for chemical, pharmaceutical, analytical, and semiconductor applications requiring precision fluid control.

✔ Ultra-compact body optimized for low-flow precision measurement
✔ Wear-free structure ensures long-term durability
✔ High accuracy: ±0.5% R.D.
✔ Interface options: RS485 (Modbus), 4–20mA, Pulse, Alarm Output
✔ Customizable electrode materials: SS316L, Hastelloy C, Titanium
