KOT-EX
(Explosion Proof Type)

Product Discription

Explosion-proof Turbine Flow Meter

The KOT-EX Series is an explosion-proof turbine flow meter designed for use in hazardous environments such as oil refineries, petrochemical plants, gas pipelines, and power generation facilities.
Certified with the Ex d IIC T6 protection rating, it ensures safe and reliable operation even in areas with flammable gases or vapors.

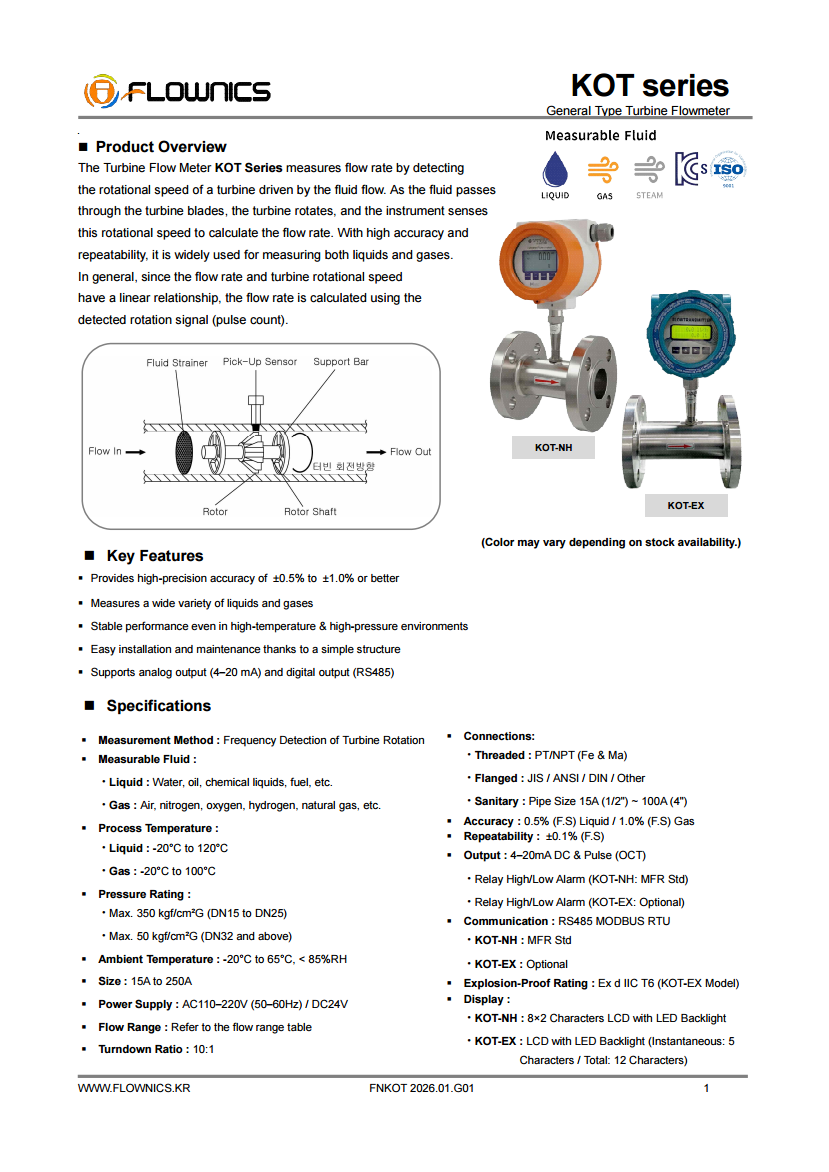

Using the principle of rotational velocity of the turbine blade, the meter offers high accuracy (±0.5% to ±1.0%), excellent repeatability, and real-time responsiveness.
It is suitable for clean liquids and gases and features corrosion-resistant construction to withstand demanding industrial conditions.

✔ Safe for use in explosive environments (Ex d IIC T6 certified)
✔ High accuracy: ±0.5% to ±1.0%
✔ Excellent linearity and repeatability through turbine rotation principle
✔ Real-time response to flow changes
✔ Wide measurement range with up to 10:1 turndown ratio
✔ Compatible with both liquid and gas
✔ Corrosion-resistant materials: stainless steel, alloy steel, duplex stainless steel
