KOT-NH
(Weather Proof Type)

Product Discription

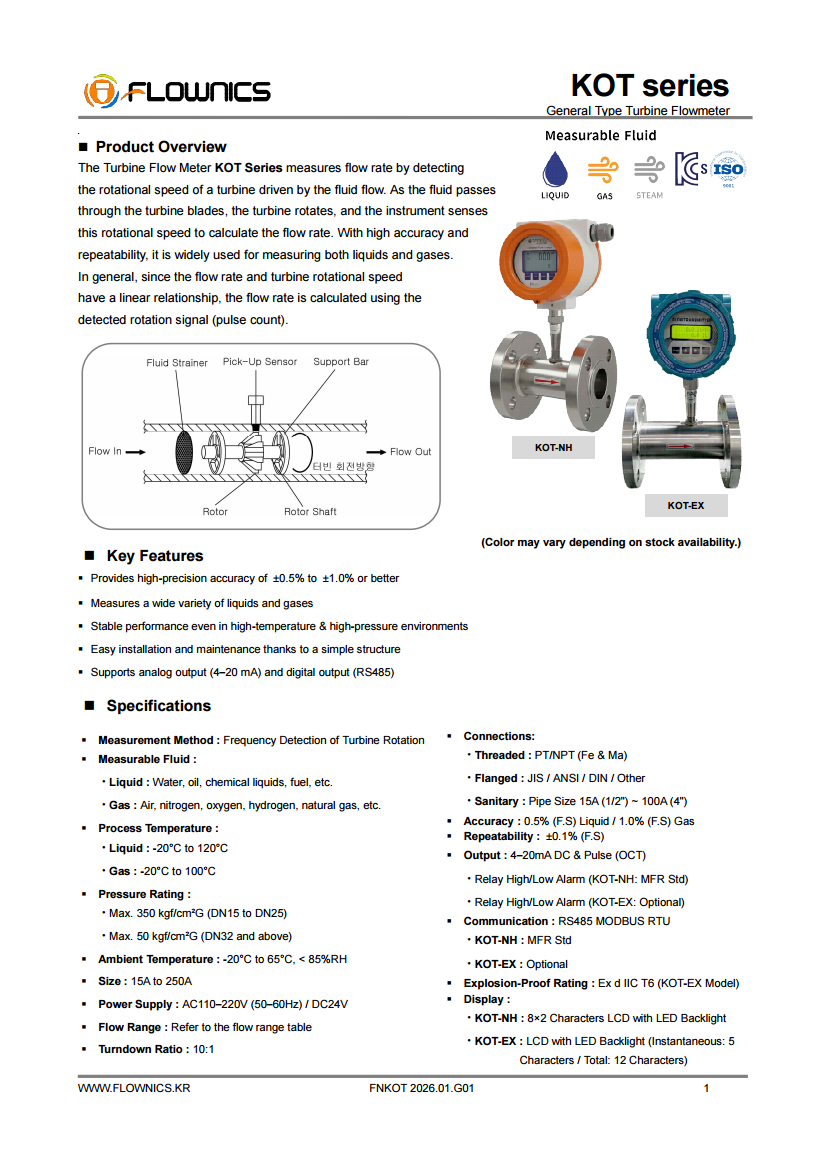

The KOT Series Turbine Flow Meter measures flow by detecting the rotational speed of an internal turbine blade driven by fluid movement. This speed is directly proportional to the flow rate, enabling precise and consistent measurement.

Optimized for clean, low-viscosity fluids—both liquids and gases—it is widely used in industries such as petrochemical, chemical processing, food & beverage, and power generation.

With a high accuracy of ±0.5% to ±1.0%, the KOT Series provides excellent linearity and repeatability, making it ideal for applications requiring precise and reliable flow monitoring.

✔ Excellent linearity and repeatability through rotational speed-based measurement
✔ Real-time flow monitoring with immediate response to flow changes
✔ Wide measuring range with up to 10:1 turn-down ratio
✔ Suitable for both liquids and gases
✔ Available in corrosion-resistant materials such as stainless steel, alloy steel, and duplex stainless steel
