KMFA-F-1
(Vertical Installation · Flange Connection Type)

Product Discription

Metal Tube Area Flow Meter

The KMFA-F-1 Series is a metal tube variable area flow meter based on the float and buoyancy principle. Its robust and corrosion-resistant construction allows for accurate and stable measurement of liquids, gases, and steam in a wide range of industrial applications.

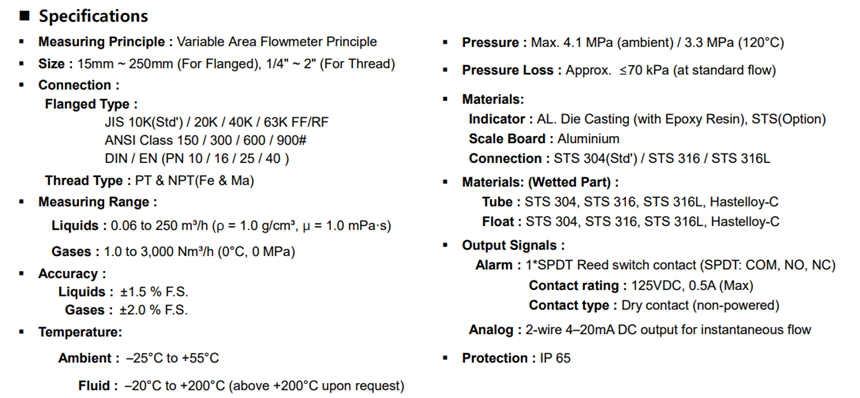

The internal float position enables direct visual flow indication, while optional 4–20mA analog output and reed switch alarm contact enhance compatibility with external instrumentation systems. With high durability under high-temperature and high-pressure conditions, the KMFA-F-1 offers ±1.5% F.S. accuracy and a 10:1 turndown ratio, making it an optimal solution for process monitoring and control.

✔ Rugged metal construction ensures excellent pressure, corrosion, and temperature resistance
✔ Suitable for liquids, gases, and steam

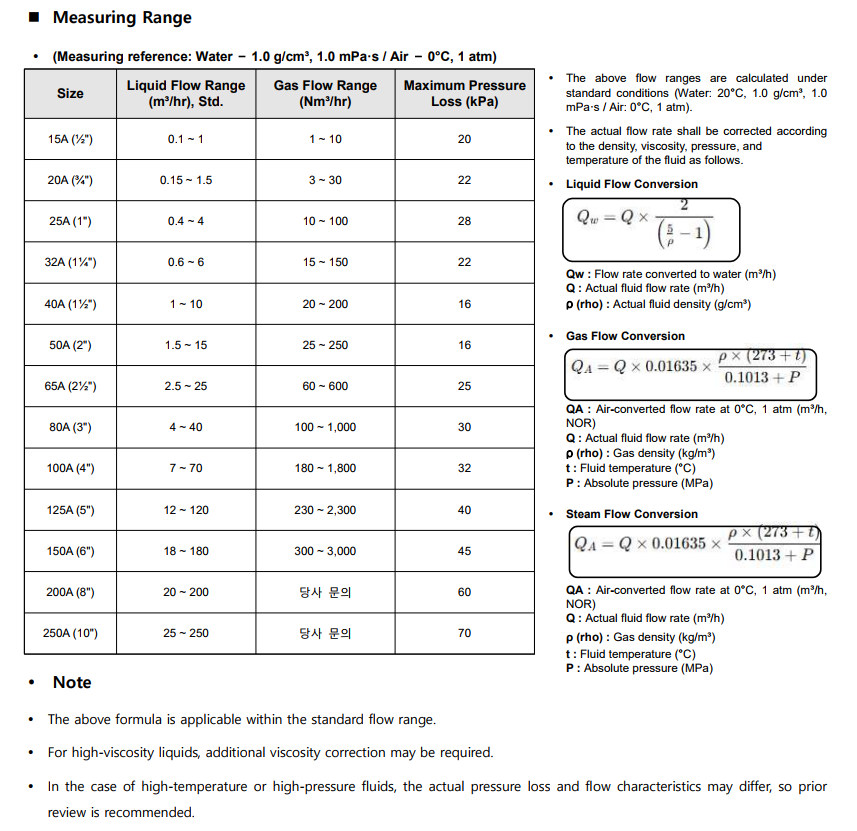

✔ ±1.5% F.S. accuracy and 10:1 turndown ratio

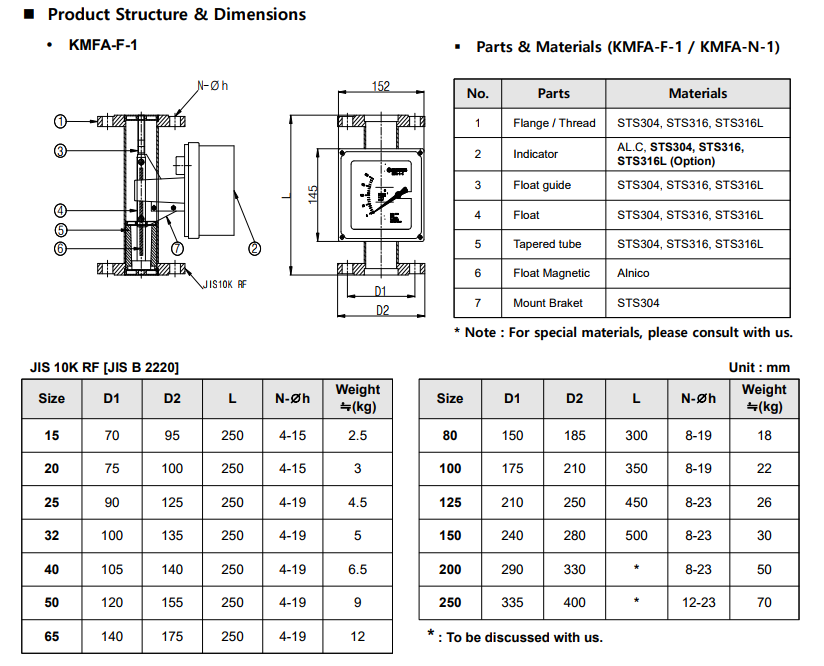

✔ 250mm face-to-face dimension for easy piping design
✔ IP65 rating for dust and water protection in harsh environments
✔ Direct reading via float position + optional 4–20mA and alarm contact output
✔ Wetted materials available in STS304, STS316, PTFE, and more
