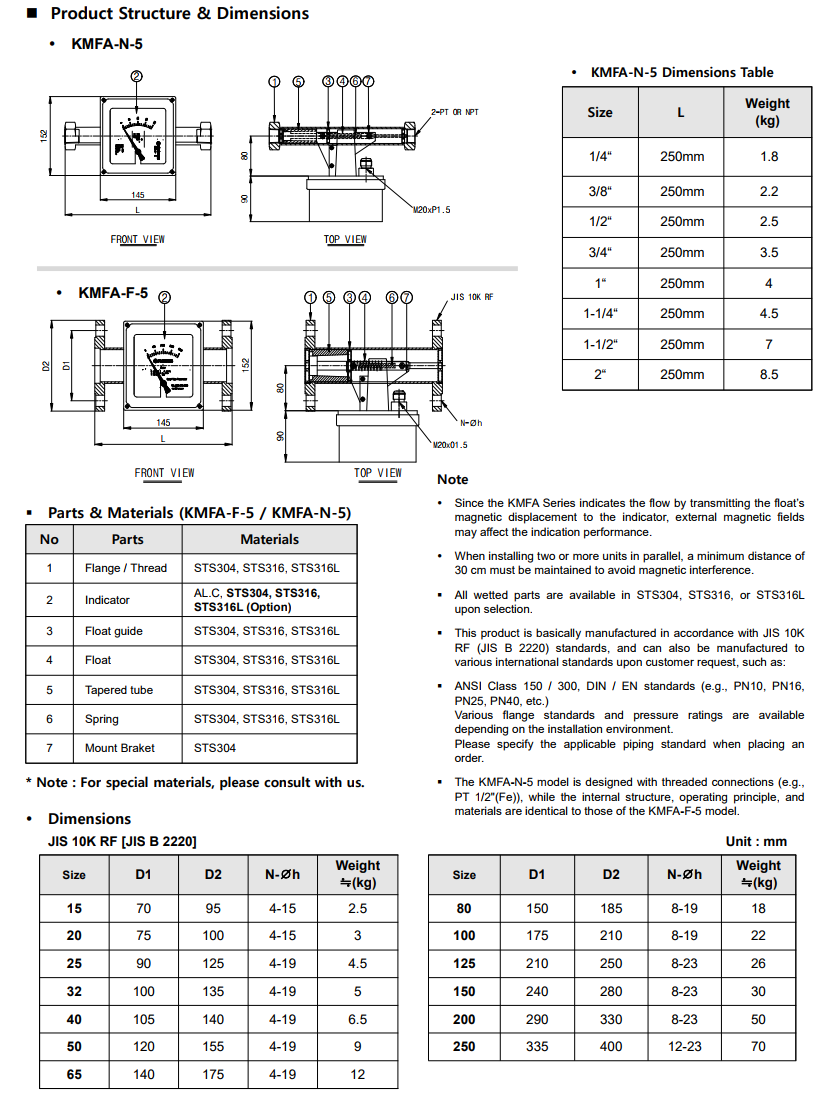

KMFA-F-5
(Horizontal Installation · Flange Connection Type)

Product Discription

The KMFA-F-5 Series is a horizontal-type metal tube variable area flow meter designed for direct installation in horizontal pipelines. With flange connections on both ends, it offers easy installation and maintenance. Its side inlet/outlet configuration is ideal for horizontal piping or skid-mounted systems, enabling reliable measurement of liquids, gases, and steam.

With an accuracy of ±1.5% F.S. and a wide turndown ratio, the KMFA-F-5 supports optional control signals such as 4–20mA output and reed switch alarms, making it suitable for integration with industrial automation and flow monitoring systems. The corrosion-resistant, pressure-resistant, and heat-resistant construction ensures stable long-term operation in demanding process environments.

✔ Horizontal piping type with flange connection
✔ Side inlet/outlet configuration for seamless inline installation
✔ Applicable for liquid, gas, and steam measurement
✔ ±1.5% F.S. accuracy and 10:1 turndown ratio
✔ Suitable for high-temperature, high-pressure conditions (IP65 rated)
✔ Optional 4–20mA output and reed switch alarm contacts
✔ Wetted materials: STS304, STS316, and other selectable options
