KMFA-F-2
(Bottom Inlet · Side Outlet Type)

Product Discription

KMFA-F-2 Series is a metal tube variable area flow meter designed with a bottom inlet and side outlet configuration, ideal for vertical installation. The fluid enters from the bottom, lifts the float, and exits from the side, enabling accurate flow measurement even in space-constrained or complex piping environments. It supports a wide range of media including liquids, gases, and steam.

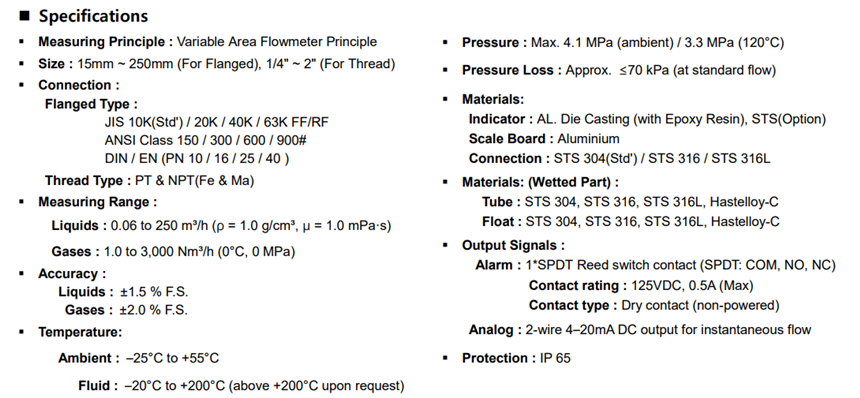

The unit offers a high accuracy of ±1.5% F.S. with a 10:1 turndown ratio, and supports options such as 4–20mA analog output and reed switch alarm contacts. Its durable construction with excellent corrosion, pressure, and temperature resistance ensures reliable performance in demanding industrial conditions.

✔ Bottom inlet / side outlet design for flexible piping layout
✔ Vertical inline installation – suitable for limited-space applications
✔ Compatible with liquids, gases, and steam
✔ ±1.5% F.S. accuracy with wide 10:1 flow range
✔ IP65-rated enclosure for dust and water protection
✔ Optional 4–20mA output and reed switch alarm contacts
✔ Wetted materials available in STS304, STS316, and others
